The first French glass balcony
tested according to
the strict Italian regulations.
(PATENTED SYSTEM)

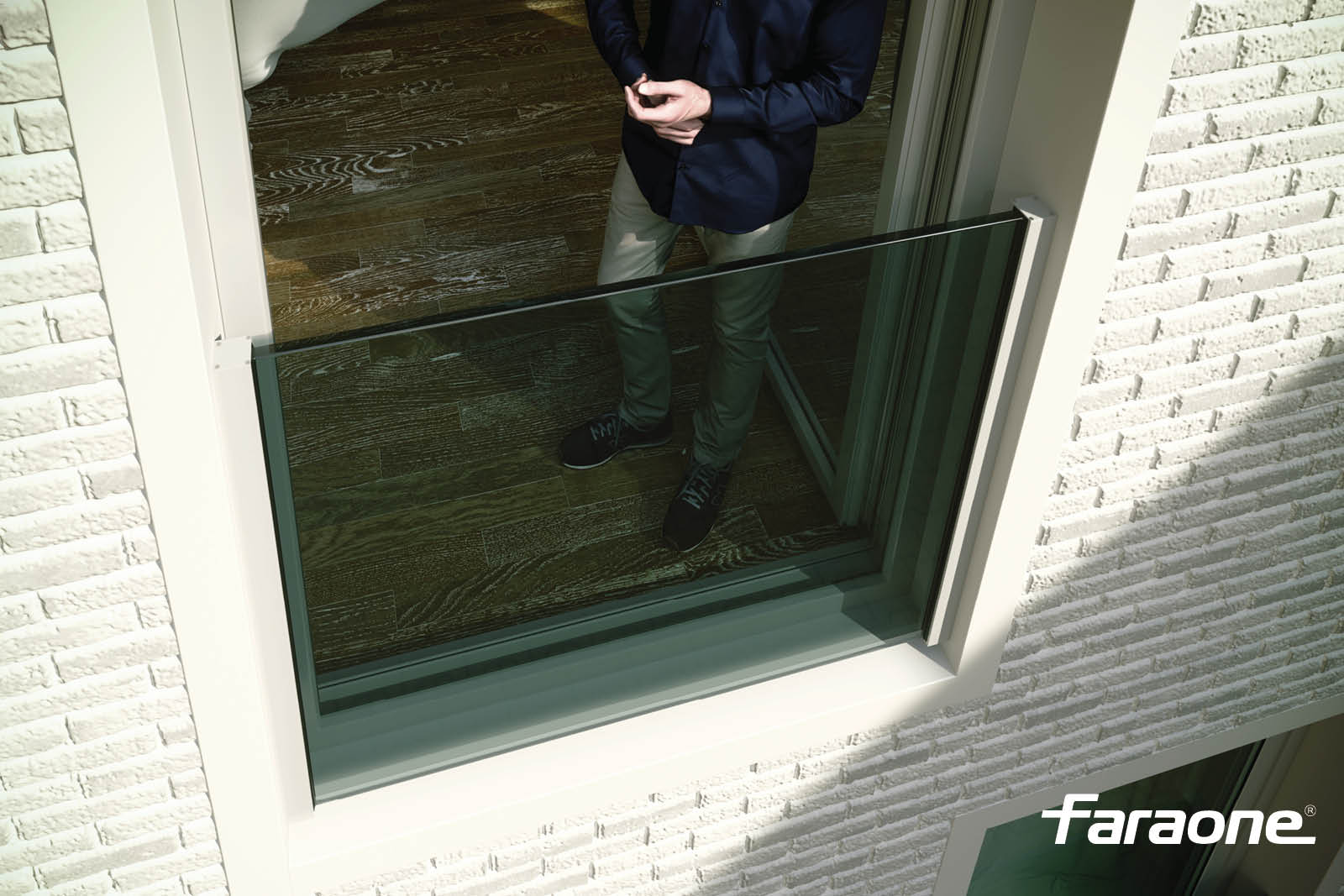

VIEW FROM INSIDE

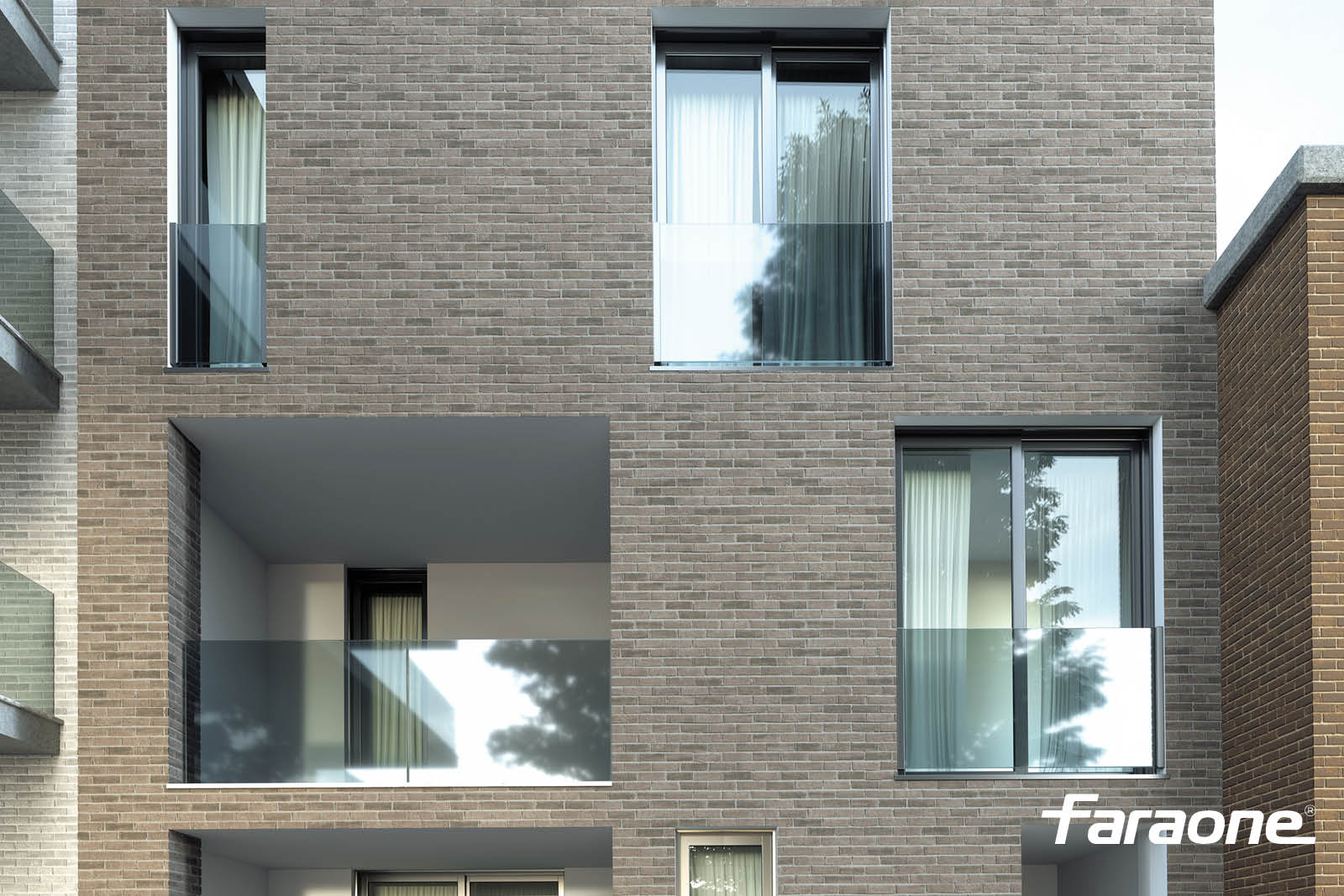

VIEW FROM OUTSIDE

Choose the model you prefer
for your balcony or window opening.
Internal fastening
(i.e. inside the window opening)

Wall-front fastening
(i.e. outside the window opening, directly on the facade)


Both systems (Giulietta int and Giulietta ext) accommodate both 8+8 and 10+10 glass.
8+8 Glass

10+10 Glass

Which colour do you prefer?
Standard finishes
BASE

Silver
ANODIZED SILVER
(raw on request)
Standard finishes
BASE

2000 RAL colours

Not just clear glass
Choose to customize your glass panes with opaque colors or particular shades such as the cloud effect.
Use screen printing or acid-etching to give a creative touch to your spaces.
Customise the interlayer with special fabrics or print your favourite graphic or effect directly onto the glass.

Technology Package
(PROVIDED BY FARAONE)

(INDICATED BY FARAONE)

1
1
Giulietta System
The heart of the Giulietta system.
How is the profile composed?
The aluminium profile
The internal PVC profile that houses and blocks the glass
The fastening, not visible
The glass press seal
Strengths
Certified performance according to regulations in force
Adaptable to different glass lengths and customised projects
Extensive customization of finishes
Reduced number of components for immediate assembly
Heights are supplied both in kit and customised form

TAPPO DO CHIUSURA
PROFILO IN ALLUMINIO
VITE DI FISSAGGIO
PROFILO IN PVC
GUARNIZIONE

TAPPO DO CHIUSURA
PROFILO IN ALLUMINIO
VITE DI FISSAGGIO
PROFILO IN PVC
GUARNIZIONE
2
2
The safety glass
Increased mechanical resistance to bending and tensile stress.
Avoids breakage caused by thermal shock.
By means of lamination, two or more panes of glass can be joined together by means of interlayer sheets, thanks to which it is possible to give the glass greater ductility and increase its performance.
Elastic interlayers E.G. EVA, PVB
Rigid interlayers E.G. SG, X-LAB, ABAR

Our Giulietta?
Elegant but also super strong!
until
300 kg/m
for uncrowded environments
(this test falls under class C2 which requires a resistance of 200 kg/m with a test performed at 300 kg/m)
until
450 kg/m
for very crowded environments
(this test falls under class C3 which requires a resistance of 300 kg/m with a test performed at 450 kg/m)
The tests on Giulietta
* It is essential that Giulietta is fastened to a supporting structure and laid in a workmanlike manner according to the instructions provided by Faraone.
Static load test

Dynamic load test

All about the Regulations
and on Safety
